Products

Only some of our electronic designs

Coming next we are proud to introduce you to some of 500+ different devices that Duolabs developed and manufactured among the years.
The following collection represents just small portion of business areas where Duolabs is actively operating such as industrial, horeca, vending, consumer, medical, telecommunication, home automation, infrastructures and much more.
Many of the products have been patented by our customers as evidence of the strong synergy with the end customer in a win-win perspective, with Duolabs as a strategic partner for your comapny growth.

DISPLAY PANELS

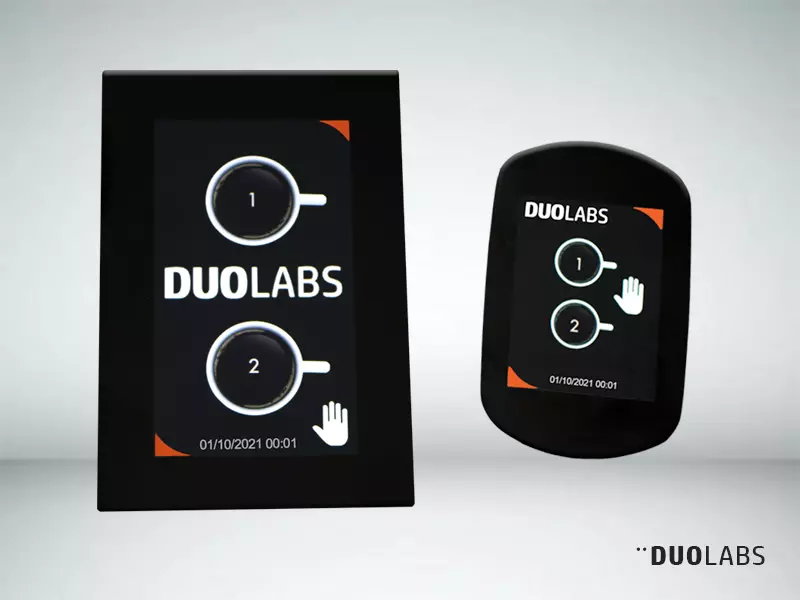

Multipurpose Touch Panel

Innovative 4.3" and 2.8" capacitive Touch-Screen panel with an intuitive and fast Graphical User Interface (GUI) which makes the device user-friendly.
This device can be easily adapted to multiple applications including home automation, medical, access control, ovens, stoves, boilers and much more.
This device can connect to our IoT Cloud Platform.

Specifically, this device has been developed for an electronic coffee grinder with a high technological content.
Some features: 110-220VAC power supply, BLE + WiFi, 3 UART connection ports, temperature and humidity sensor, automatic QRCode generation and much more.

TFT Display with capacitive buttons

Display Panel from 1.44" to 3.5" (picture 2.8") TFT with TN or IPS technology and 3 capacitive buttons.
The Graphical User Interface of this device is controlled by the three touch panel buttons placed in the lower part of the panel.
The unique Graphical User Interface has been developed in-house using a high performing and Royalty-Free proprietary library available for Duolabs customers.
This architecture is very flexible and adaptable to every need for budged applications. This panel is available in 4 versions that can be configured upon your needs.
This device can connect to our IoT Cloud Platform.

Specifically, this device was developed for an electronic coffee grinder.
Some features: 110-220VAC power supply, 2 UART connection ports, temperature and humidity sensor, automatic QRCode generation and much more.

Monochromatic LCD Display

Custom monochromatic LCD display for battery operated devices.
This LCD display is a classic example of customer-specific design combining the low budget factor with the need for functionality.

Specifically, this device was developed for a Bluetooth Low Energy thermometer that connects to a power board installed into a coffee machine.
This product has been patented as an example of a winning win-win strategy between Duolabs and its customer.
Some features: Custom LCD Display, BLE, battery operated device with connection to power board.

connectivity

RFID-NFC Reader/Writer

An extremely compact and versatile RFID-NFC reader/writer supports the NFC protocols ISO/IEC 14443 Type A and B, ISO/IEC 15693, ISO/IEC 18092 and MIFARE® Classic 12 compatible. It can read and write tags according to NFC Forum Type 1, 2, 3 and 4 specifications. The internal operating system developed by Duolabs allows an easy and versatile implementation and connection with any external systems. The module has been designed for NFC communication and its onboard microcontroller is suitable for a complete application such as:

  • Access control (door opening etc.).
  • Unlock Bike-Sharing trolleys.
  • Payment system.
  • Employee entry/exit stamping.
  • more...
This reader/writer can host a BLE + WiFi module to connect to a larger eco-system.
This device can connect to our IoT Cloud Platform.
Dozens of applications have been developed using this device.
This device can connect to our IoT Cloud Platform.

Some features: 5V power supply, BLE + WiFi (optional), 3 UART connection ports, and much more.

WiFi Module - Access Point

This WiFi Module/Access Point is part of a wider range of WiFi modules made by Duolabs.
The peculiarity is given by the complexity of a module with Linux Embedded and the low level interfacing with UART and other peripherals.
Cheaper and more compact modules are available which for the sake of brevity are not shown on this page.
The reason why this module is advertised is the complex development of a proprietary module that differs from the classic low-cost WiFi+BLE modules on the market which do not require any special hardware modifications to make them work.
Here are some of the most important features:

  • Qualcomm Atheros AR9331 chipset
  • Linux Embedded
  • 2x UART
  • 1x USB 2 Serial Port
  • 802.11 b / g / n 150Mbps (130Mbps real)
  • Wireless power output 20dBm - 100mW
  • 4 MB flash memory (can be modified for 16MB)
  • 32 MB RAM (can be modified for 64MB)
  • USB 2.0 port (High-Speed ​​only, use an external High-Speed ​​hub for Full / Low-Speed ​​devices)
  • Powered via micro-USB socket

Compatible with OpenWRT and our IoT Cloud Platform

BLE 5.0 Module

This compact and functional BLE module has been created with the aim of minimizing costs and dimensions while maintaining compatibility and consumption for battery-operated devices.
The reason why this module is advertised is the complex development of a proprietary module that differs from the classic low-cost BLE modules on the market which do not require any special hardware modifications to make them work.

final prototypes

LoRa Portable tracking device

"A ground breaking tracking/security device (GPS, GLONASS, Galileo and QZSS)".
This definition expresses at its best the functionality of this device capable of geolocating and communicating from miles away.
A set of embedded technologies that allows this device to send and receive alarm messages using LoRa modulation, based on the LoRaWAN protocol modified by Duolabs to achieve maximum tower-node coverage.
This portable device is battery operated and features a 2.4"TFT display and three capacitive touch buttons.
The device connects to a LoRa Gateway, thanks to a precise calibration of the antenna it reaches a distance of over 10Km in an urban area.
Designed for IP67 protection, it communicates over short distances via RFID (Tag mode) and BLE. This device is charged via Wireless.
Over two years of research and development, the system is designed and manufactured by Duolabs and it includes the Portable Device (code name CPT), Application Server and Network Server.

Here are some of the most important features:

  • 32Bit ARM chipset.
  • 2,4 "TFT display.
  • 3 capacitive buttons.
  • Proprietary LoRa module .
  • LoRaWAN protocol modified to create a "mesh" network based on LoRa modulation .
  • Proprietary BLE 4.2 module.
  • GPS, GLONASS, Galileo and QZSS module.
  • RFID Tag functionality - ISO 15693.
  • Qi standard wireless charging.
  • 3700MhA battery.
  • Designed to achieve an IP67 degree of protection.

This device connects to our IoT Cloud.

Made for human tracking with proprietary infrastructure based on LoRa technology.
The Duolabs system has been used in theme parks, hotels, tourist villages, nursing homes, etc.

IOT BOX - By DUOLABS

IoT Box is specially designed to deliver the data of your devices in the most extreme conditions.
Let's start by saying that IoT Box, designed by Duolabs, includes some of the connectivity solutions and can be reduced as form-factor and adapted to the specific needs of the customer.
IoT Box is designed to connect directly with our IoT Cloud and can be adapted to connect to any third party Cloud.
We provide APIs for connecting to our IoT Cloud to be able to implement it in a proprietary Cloud.
IoT Box versatility is the right device for most scenarios and can be reconfigured real-time according to needs that may vary over time.
Its flexibility allows you to prevent to physically access for an update or to change the settings in the field. Everything can be managed remotely.

Here are some of the most important features:

  • 32Bit ARM chipset.
  • WiFi + BLE module.
    Web Server via WiFi and BLE connection for Smartphone.
  • GSM / GPRS - 2G.
  • GPS, GLONASS, Galileo and QZSS module.
  • Supports TFT / LCD / OLED display.
  • SD-Card support.
    For data saving in case of lack of connectivity.
  • O.T.A. (Over The Air) Update.
  • RS-485 connection.
  • USB 2.0 connection.
  • Acoustic buzzer.
  • Backup battery for R.T.C. (Real Time Clock)
This device connects to our IoT Cloud.

Suitable for every need. CONTACT US FOR INFORMATION.
Some features: Power supply 12Volts DC or internal Lithium battery.

GSM/GPRS Module

GSM/GPRS module for remote device management via SMS or GPRS.
Simple to use, it allows by sending SMS to send commands via RS-232 to another device connected to it.

This device has been developed for the remote management of pellet boilers and burners.
Some features: 5Volts DC power supply.

coffee world

Capsule Coffee Machine board

A compact board to manage pod or capsule coffee machines with 2/3 buttons it is capable to manage internal consumption counters as well as capacitive or push buttons.
This board has a connection to additional devices such as WiFi+BLE or RFID modules manufactured by Duolabs.
This device has a connection to our IoT Cloud.

Some features: 110-220VAC power supply, PID management.

Professional Coffee Machine board

This board is dedicated to the professional Horeca Espresso Coffee Machine market manages up to 3 groups and steamer.
The board connects to an external push-button panel or to a 1.44" to 4.3" TFT Display and allows Firmware updating via USB.
This platform is expandable from 2 to 4 groups on request and is designed for one of our WiFi+BLE modules.
Available with linear or switching power supply.
This device can be connected to our IoT Cloud.

CONTACT US FOR INFORMATION.

Professional 50Kg Scale with 0.1g precision

Professional scale baord developed by Duolabs capable of weighing up to 50Kg with the extraordinary accuracy of 0.1 grams.
Connectable to external devices via UART, it is extremely stable and precise to guarantee reliability and calibration over time.
It can install a 1.44" TFT display, it can also be used as a stand-alone device.
This device can be connected to our IoT Cloud.

This product has been patented as an example of a winning win-win combination with the Duolabs its customer.
Some features: 110-220VAC power supply or lithium battery.

other products

Pellet heater Board

This product was developed by Duolabs for the management of pellet stoves.
This panel houses a 1.44" display with an absolutely innovative and simple GUI (Graphical User Interface).
The user interface supports multiple languages ​​in a single firmware and fonts are available for all languages.
The simple and intuitive menu with three capacitive buttons offers extreme ease of installation.
This version has an optional module for remote access via 2G/3G/4G Modem that is fully programmable and configurable in an easy and intuitive way.
This device can be connected to our IoT Cloud.

Some features: 110-220VAC power supply, 2 UART connection ports, temperature and humidity sensor.

pellet burner board

This product was made for a company of burners and pellet boilers according to customer specifications with some important and fundamental Duolabs technological additions.
This panel houses a 2.8" display (optional 1.44") display with an absolutely innovative and simple GUI (Graphical User Interface).
The user interface supports multiple languages ​​in a single firmware and fonts are available for all languages.
The innovative touch system consisting of three buttons with touch cap-sense technology.
Here are some of the most important features:

  • 2 Analog Inputs (additional inputs optional)
  • 2 Digital Inputs (additional inputs optional)
  • 3 220 Volts outputs (additional inputs optional)
  • 3 outputs at 24 Volts (additional inputs optional)
This version has an optional module for remote access via 2G/3G/ 4G Modem which is completely programmable and configurable in an easy and intuitive way.
The device is available in the version with panel with 2.8" or 1.44" display with variable front panel size.
This device can be connected to our IoT Cloud.

Some features: 110-220VAC power supply, 2 UART connection ports, temperature and humidity sensor.

forklift charger board

This product has been manufactured according to customer specifications with some important and fundamental technological additions of Duolabs.
This panel houses a 2.8" display with an absolutely innovative and simple GUI (Graphical User Interface).
The user interface supports multiple languages ​​in a single firmware and fonts are available for all languages.
Following an innovation policy, the panel has been equipped with an extremely precise temperature and humidity sensor.
The main board (pictured) has a power line communication input (supplied by Duolabs) for communication with the forklift battery pack for charge and temperature control.
This device allows fleet management connected to a specific software developed by PC developed by Duolabs .
This device can be connected to our IoT Cloud.

Some features: battery voltage from 24Volts to 72Volts.

DUOLABS PRODUCTS - OUT OF PRODUCTION

WE NO LONGER GIVE SUPPORT OR WARRANTY.

DIGITAL RECEIVER HD - QBOXHD

The QBoxHD was the first HD decoder based on Linux with Enigma 2 middleware written in python entirely developed by Duolabs and marketed since 2008.
The features that at the time made it unique in its genre and never introduced in a decoder stood out: FPGA module for decoding HD channels, 2.2" TFT display, capacitive front touch panel, 802.11 b/g/n WiFi module.
  • STi7101 266Mhz CPU.
  • 8MByte NOR Flash.
  • 128MByte RAM Memory.
  • Personal Video Recording via USB 2.0
  • Channel Timeshift
  • 3 Plug and Play Tuner Slots.
  • WiFi Connection 802.11 b/g/n.
  • 10/100 MBit Ethernet.
  • 3 USB Ports.
  • 1 HDMI Output.
  • 1 RGB Output.
  • 1 Component Output.
  • 2 Scart Outputs.
  • S/PDIF Output.
  • 2 Smartcard Readers ISO.
  • 2 Common Interface Slots.
  • 1 RS-232 Debug Port.
  • Supports 3,3 and 5,0 Volts Smartcards
  • DuoCrypt CAS Embedded.
  • Transport Stream Delayer.
  • 220 Volts Power Supply.
  • Cap-Sense Touch panel.
  • 2.2 Inches LCD Display.

NOTE: THIS PRODUCT IS NO LONGER SUPPORTED WITH FIRMWARE, SOFTWARE OR HARDWARE UPDATES. WE KINDLY ASK YOU NOT TO CONTACT US ABOUT IT.

DIGITAL HD Set-Top-Box - QBOXHD MINI

The QBoxHD Mini was the was low-budged version of its big brother QBoxHD based on Linux with Enigma 2 middleware written in python entirely developed by Duolabs and marketed since 2009.
The features that at the time made it unique in its genre and never introduced in a decoder stood out: FPGA module for decoding HD channels, 1.77" TFT display, 802.11 b/g/n WiFi module.
Some features:

  • STi7101 266Mhz CPU.
  • 8MByte NOR Flash.
  • 128MByte RAM Memory.
  • Personal Video Recording via USB 2.0
  • Channel Timeshift
  • 2 Plug and Play Tuner Slots.
  • WiFi Connection 802.11 b/g/n.
  • 10/100 MBit Ethernet.
  • 3 USB Ports.
  • 1 HDMI Output.
  • 1 RGB Output.
  • 1 Component Output.
  • 2 Scart Outputs.
  • S/PDIF Output.
  • 2 Smartcard Readers ISO.
  • 1 RS-232 Debug Port.
  • Supports 3,3 and 5,0 Volts Smartcards
  • DuoCrypt CAS Embedded.
  • Transport Stream Delayer.
  • 220 Volts Power Supply.
  • 1.77" LCD Display.

NOTE: THIS PRODUCT IS NO LONGER SUPPORTED WITH FIRMWARE, SOFTWARE OR HARDWARE UPDATES. WE KINDLY ASK YOU NOT TO CONTACT US ABOUT IT.

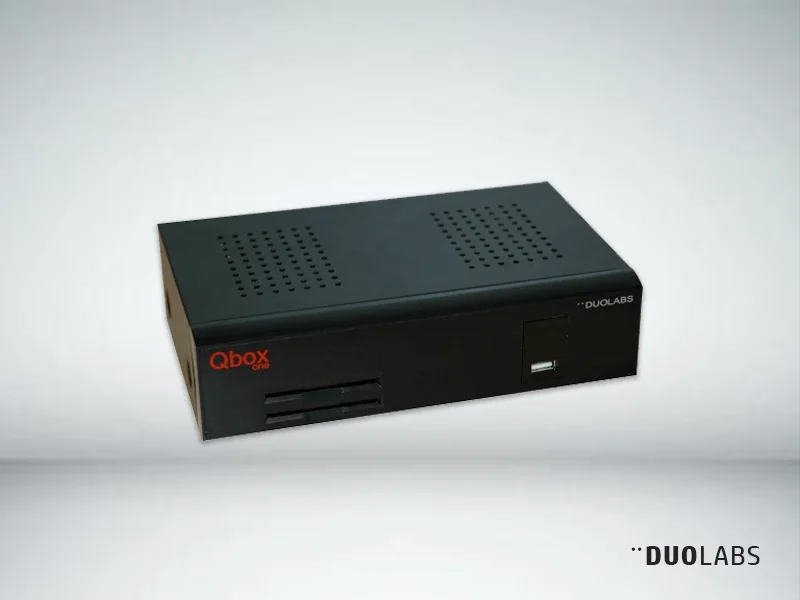

DIGITAL SET-TOP-BOX - QBOXONE

The QBoxOne was the first digital receiver designed and marketed by Duolabs since 2006. Based on Linux operating system with Enigma middleware written in python it represented for Duolabs the official entry into the world of DVB receivers.
Some features:

  • Linux OS - Kernel 2.6.17
  • 250 MHz PowerPC processor.
  • 2 status LED.
  • Personal Video Recording (PVR) via USB.
  • Plug&Play Tuners (DVB-S, DVB-C DVB-T).
  • 2 x smartcard reader (DuoCrypt).
  • V.24 RS232 serial port.
  • 10/100 Mbit compatible ethernet.
  • 2 X Scart.
  • Video Audio Cinch out.
  • S/PDIF for digital bit stream out.
  • Support for internal HD (2,5”).
  • Channel change time <1 second.
  • Supports EPG (electronic program guide).
  • Supports multiple LNB switching control(DiSEqC).
  • Fully adaptable OSD in many languaguaes.
  • 12 volts Power Supply.

NOTE: THIS PRODUCT IS NO LONGER SUPPORTED WITH FIRMWARE, SOFTWARE OR HARDWARE UPDATES. WE KINDLY ASK YOU NOT TO CONTACT US ABOUT IT.

DIABLO CAM (SERIES)

The Diablo CAM has been together with the Cas Interface (entire series) one of the historically best-selling products by Duolabs with over 500,000 pieces marketed on 5 continents in 8 years since 2005.
The CAM (Conditional Access Module) is a conditional access module that allows the decoding of DVB signals using the Smartcard housed in its internal reader.
It can be inserted in a Digital Television with Common Interface Slot or in a Digital Receiver with Common Interface Slot.

The Diablo CAM was made in the following versions:

  • Diablo CAM Light.
  • Diablo CAM 2.
  • Diablo CAM PRO (128 PID).

Connected versions:

  • Diablo CAM LAN (Ethernet).
  • Diablo CAM WiFi.
    NOTA: First World CAM Module with WiFi connection.
  • Diablo CAM GSM.
    NOTA: First World CAM Module with GSM/GPRS connection.

NOTE: THIS PRODUCT IS NO LONGER SUPPORTED WITH FIRMWARE, SOFTWARE OR HARDWARE UPDATES. WE KINDLY ASK YOU NOT TO CONTACT US ABOUT IT.

CAS INTERFACE (SERIES)

The Cas Interface (entire series) one of Duolabs' historically best-selling products with over 800,000 pieces marketed on 5 continents in 11 years since 2003.
The Cas Interface series with all its variants and updates allowed to update the majority of CAM modules on the market as well as it operated as a Smartcard reader/writer via USB.
The product has enjoyed worldwide success with many forums dedicated to Digital TV and Smartcard programming.
Many years later many customers (mainly hobbyists) still contact us to request information or to release updates that are no longer available.
Duolabs thanks all those who have supported this product over time with their contributions and sharing their experiences.
We kindly ask you to respect the company choices in discontinuing updates from 2014 and not to contact us to request further information.
Today the company business area is focused on other markets. We trust in your understanding.


The Cas Interface series:

  • Cas Interface Parallel Port (first device ever).
  • Cas Interface 2 USB.
  • Cas Interface 2 Plus.
  • Cas Interface 3.
  • Cas Interface 3 Plus.
  • Cas Interface 4 - for Duolabs Internal use ONLY.


NOTE: THIS PRODUCT IS NO LONGER SUPPORTED WITH FIRMWARE, SOFTWARE OR HARDWARE UPDATES. WE KINDLY ASK YOU NOT TO CONTACT US ABOUT IT.

SMARTCARD READER/WRITER - STINGER

The Stinger is Smartcard reader/write compatible with ISO-7816 stadard. It is easy to interface via USB and can be configured as a COM port.
Compact, functional and easy to use, it can be connected to any PC with Windows, MacOS and Linux operating systems.
It mounts a quartz at 3,579Mhz or 6.00Mhz.

NOTE: This product is still in production. Contact us for further information.
